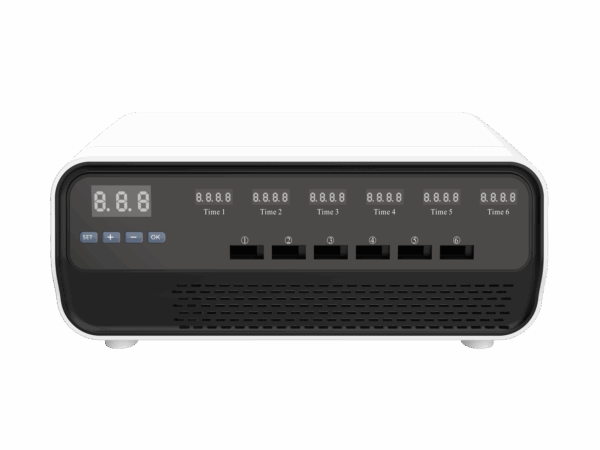

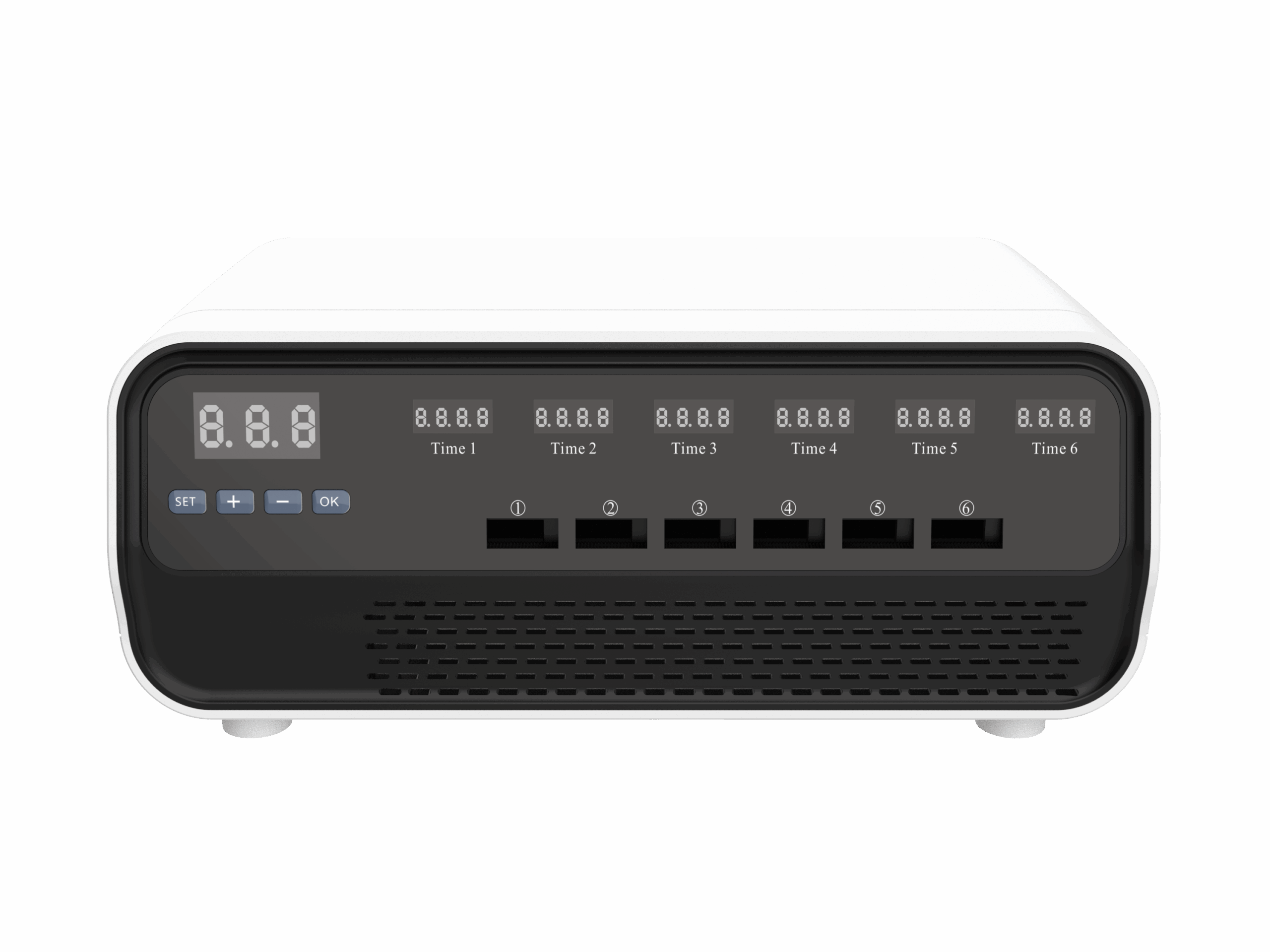

Description
The Reagent Incubator is a versatile and efficient device designed for the controlled incubation of rapid test cards. With six independent incubation channels, it allows simultaneous testing of multiple samples, improving efficiency in high-demand testing environments.
Its aluminum substrate heating plate ensures fast and uniform heating, while the portable design makes it suitable for both laboratory professionals and on-site inspectors. Offering flexibility, precision, and reliability, this incubator is an essential tool for food safety monitoring and diagnostic testing.
Applications
- On-site food safety testing in agricultural, processing, and inspection environments.
- Laboratory incubation for mycotoxin, pathogen, and other rapid detection assays.
- Compatible with a wide range of rapid test kits requiring stable incubation.
Technical Specifications
| Item Code | YH-061 |
| Temperature Range | 5–65 °C |
| Temperature Control Accuracy | ±0.1 °C |
| Stabilization Time | <30 minutes from ambient temperature |
| Size | 185 × 135 × 48 mm |
| Weight | <1.5 kg |
| Power Supply | 100–240 V AC (50/60 Hz) / 12 V DC |
| Input Power | 30 W |
| Operating Conditions | Temperature: 20–40 °C, Humidity: 0–85% RH (non-condensing), Pressure: 86-106 kPa |
