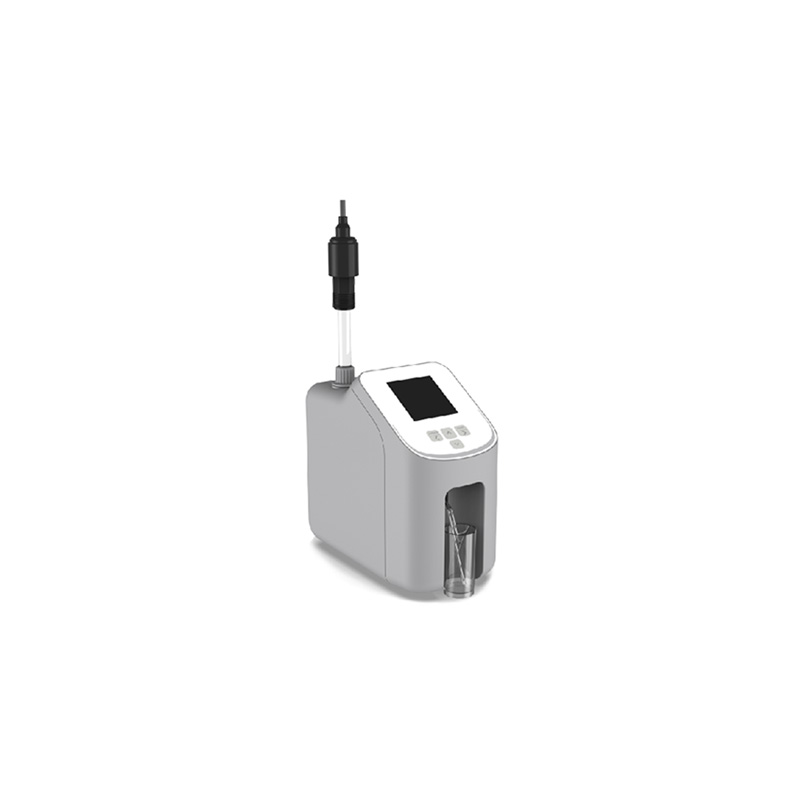

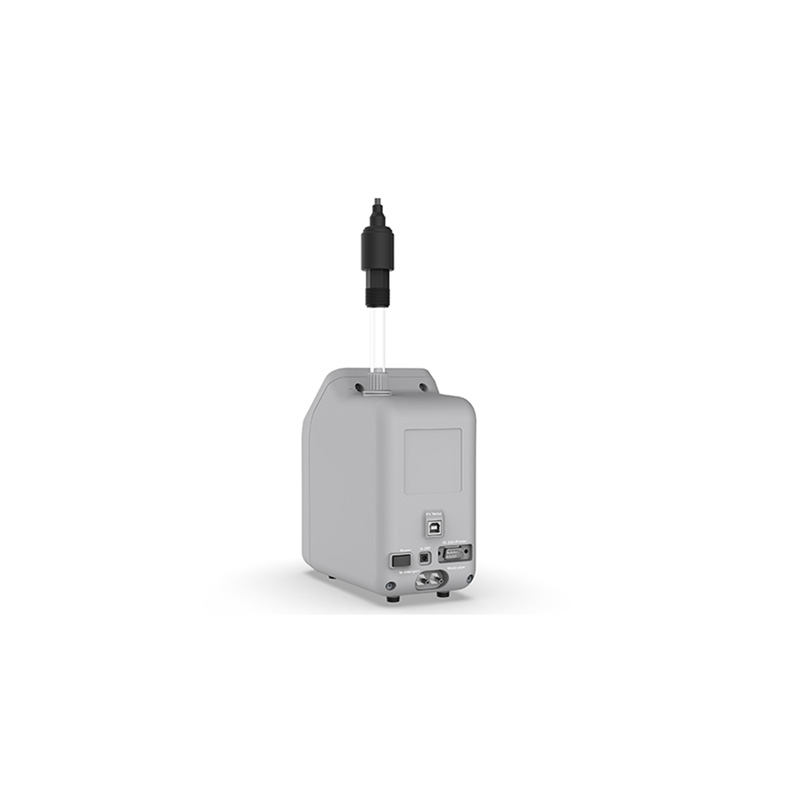

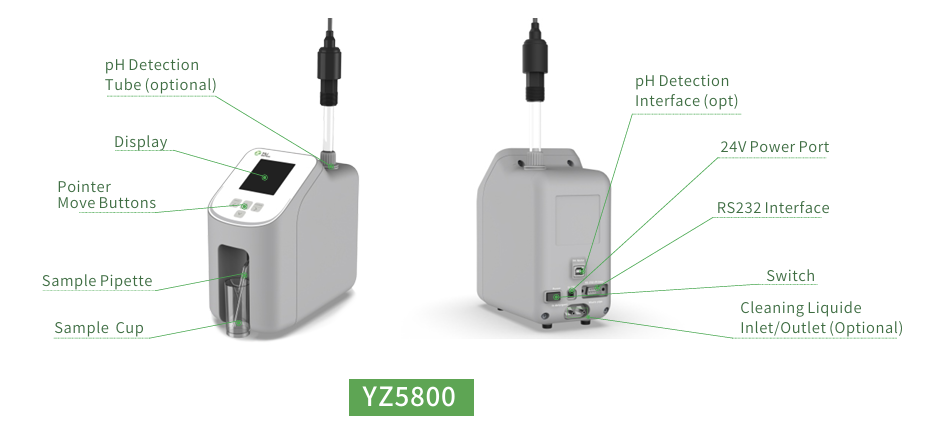

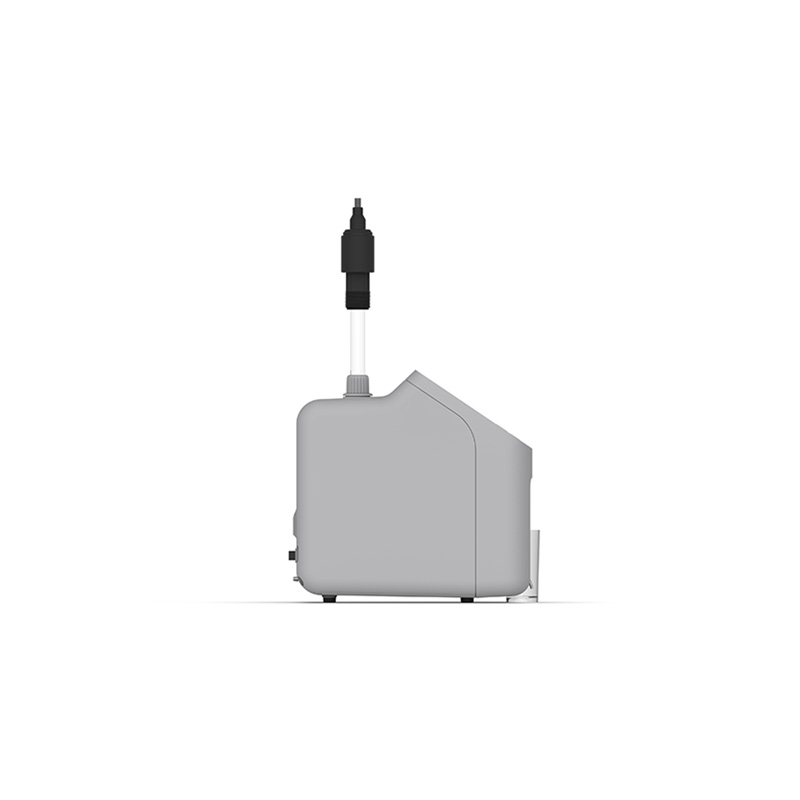

YZ5800 Milk Analzyer

Description

The YZ5800 milk analyzer employs advanced ultrasonic technology to deliver rapid, precise analysis of the chemical composition in milk and dairy products. As a dedicated high‑end instrument tailored for the dairy industry, it plays a pivotal role in quality control and product development. The YZ5800 excels in evaluating a wide range of dairy matrices—including raw milk, UHT and pasteurized milk, high‑viscosity yogurts, fermented yogurts, and specialty milk beverages—making it an indispensable tool across production and processing environments.

Conducting
a
comprehensive
analysis
on
the
propagation
characteristics
of
 ultrasonic
waves
in
different
media,
as
well
as
the
structure
and
composition
of
 milk.
Analyze
the
effects
of
fat,
non‑fat
milk
solids,
proteins,
temperature,
and
other
 factors
on
the
attenuation
and
velocity
of
ultrasonic
waves.
 By
organizing
the
data
into
curves,
a
relationship
diagram
was
obtained
that
 illustrates
the
correlation
between
different
components
in
milk
and
ultrasonic
 wave
properties.

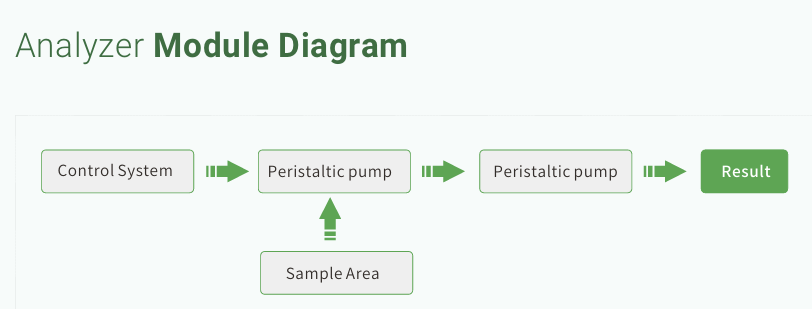

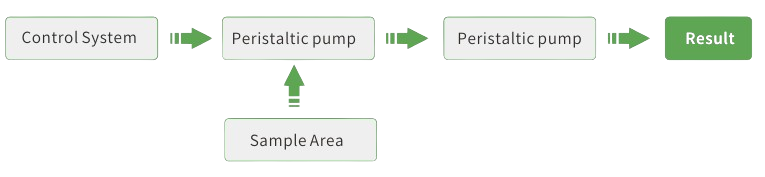

Analyzer Module Diagram

As
shown
in
the
flow
chart,
the
control
system
controls
the
peristaltic
pump
to
draw
 samples
into
the
detection
tube
(detection
system),
the
countdown
is
 ,

seconds and
the
detection
system
analyzes
the
milk
components
through
ultrasonic
 reflection
reception,
obtains
the
results
and
displays
them.

Basic Performance

Volume of the sample to be tested	20mL
Dimensions	(Width 88mm X Depth 194mm X Height 188mm)
Weight	1.1kg
Power Supply	Input꞉ 100~240V_2A, 50/60 Hz Output꞉ 24V_3A
Power	<72W
Communication Interface	RS232-USB interface
Printer Interface	RS232-USB miniB interface

Advantages

• One touch analysis, elegant design
• Robust and easy to operate
• Fast and accurate result
• Low operating and maintenance cost
• Durbale in all weather conditions
• Better repeatability and accuracy

Documentation

• YZ5800 Milk Analyzer Brochure
