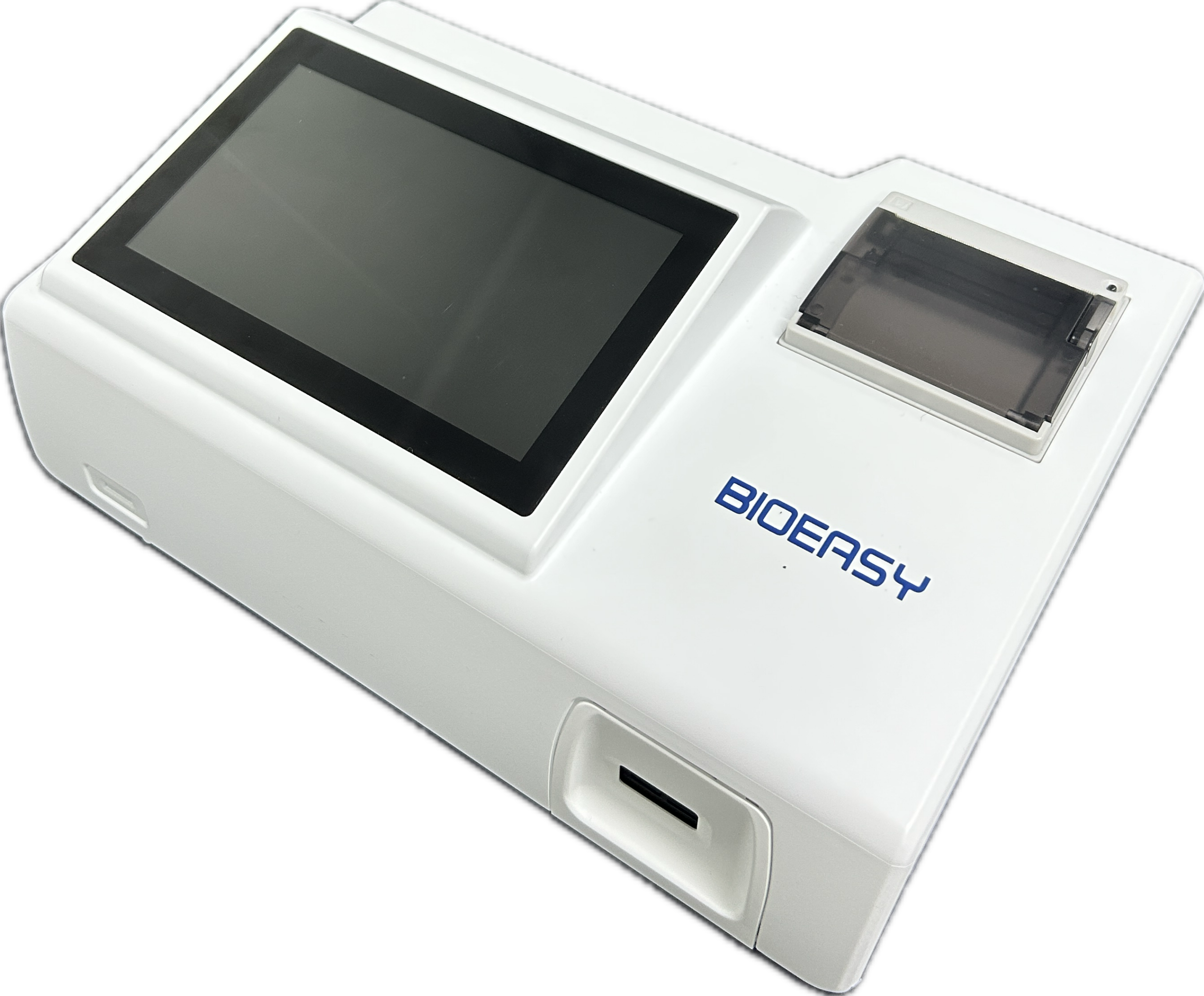

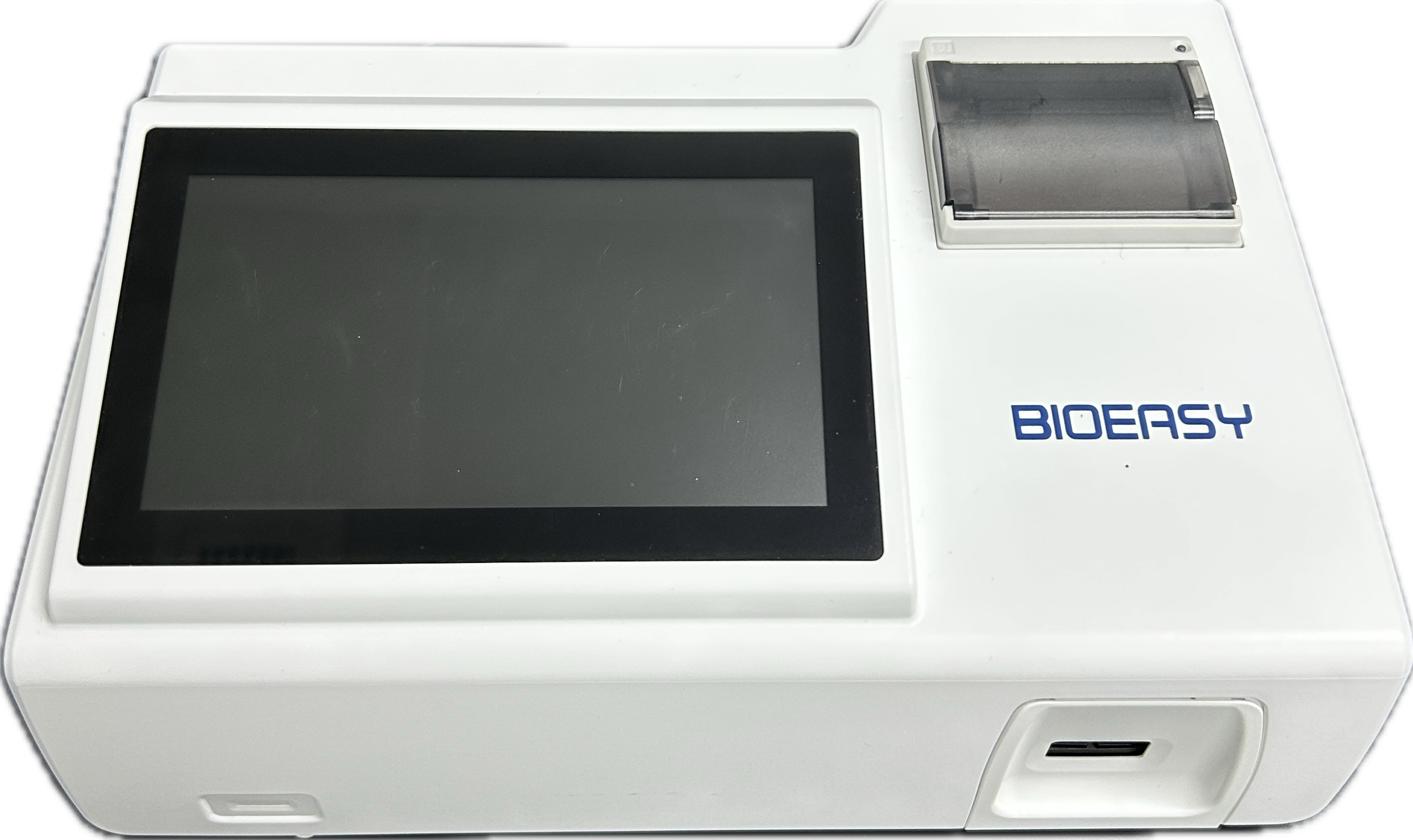

EASY-11 Immunofluorescence Analyzer

Description

The BIOEASY™ EASY-11 Immunofluorescence Analyzer is a compact, portable fluorescence detection system designed for food safety detection and animal disease diagnosis. It supports qualitative and quantitative analysis of a wide range of analytes in sample types including raw milk, cereals/feed, tissue, serum/plasma, and more. With a built-in touchscreen, integrated thermal printer, and support for disposable test cassettes, the EASY-11 is designed for efficient routine testing in both laboratory and field settings.

Advanced Detection Technology

The EASY-11 uses a high-intensity monochromatic LED as the excitation light source, with a detection wavelength of 365/610 nm. Fluorescence emitted from the test cassette is collected and converted into an electrical signal using a photosensitive receiver, allowing the analyzer to calculate analyte concentration through a pre-programmed calibration process. The system supports up to 4 test lines and uses peak height, peak area, and T/C ratio analysis for reliable result interpretation.

User-Friendly Operation

The EASY-11 features a 5-inch capacitive touchscreen with a clear and intuitive interface for test setup, result review, and system settings. Users can enter sample information, import project and batch data via the ID chip, insert the incubated test cassette, and allow the analyzer to automatically perform detection. Results can be viewed on-screen, printed immediately using the built-in thermal printer, and stored for later review. The analyzer also supports USB export, WiFi, Bluetooth, RS232, and optional data transfer through the Bioeasy Data Management System (DMS).

Quality Control and Data Management

The EASY-11 supports QC card verification for routine quality control checks and can store at least 10,000 test records. Historical data can be searched, reviewed, printed, and exported via USB. For laboratories requiring digital record integration, the analyzer can also connect to the Bioeasy DMS for automatic upload of completed test results.

Safety and Maintenance

The EASY-11 is designed for simple day-to-day operation and minimal maintenance. The analyzer should be used in a dry, clean environment on a flat and stable surface, away from direct sunlight, vibration, and strong electromagnetic interference. Routine maintenance is limited to external cleaning and replacing the installed printer paper as required. For safe operation, only the supplied power adapter and accessories should be used.

Specifications

Model	EASY-11
Product Type	Immunofluorescence Analyzer
Detection Wavelength	365 / 610 nm
Light Source	High-intensity monochromatic LED
Wavelength Accuracy	±2 nm
Maximum Test Lines	Up to 4 lines
Optical System	Photodiode (PD) detector
Display Screen	5-inch capacitive touchscreen, 480 × 800
Operating System	Embedded Linux OS
Wireless Communication	WiFi, Bluetooth
Device Interfaces	RS232 port, 2 × USB ports, ID card slot
Printing Method	Built-in thermal printer
Data Storage Capacity	≥10,000 test records
Dimensions	280 × 240 × 130 mm
Weight	≤2.0 kg
Operating Temperature	5°C to 40°C
Humidity	10% to 80% (non-condensing)
Atmospheric Pressure	860 to 1060 hPa
Power Supply Voltage	AC 100–240V
Power Supply Frequency	50/60 Hz
Power Input	48 W
Storage and Transport Temperature	-10°C to +50°C
Storage Humidity	≤85%

What’s Included

• BIOEASY™ Immunofluorescence Analyzer
• Power adaptor
• AC power cord
• USB drive
• Printer paper (installed)
• QC card
• Operation manual
• Warranty card
• Certificate of Conformity
• Packing list

Downloads

• EASY-11 Operation Manual
• Bioeasy DMS Integration Guide
• QC Card Instructions
